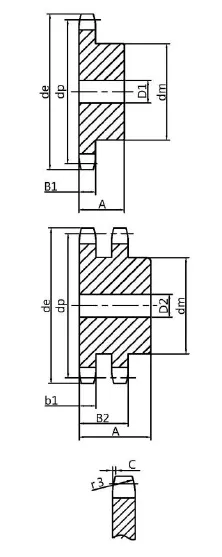

05B-1-2
SPROCKETS 8x3mm
For chain Acc.to DIN 8187
ISO/R606
SPROCKETS                   mm
Tooth radius r3                     8
Radius width C                     1.0
Tooth width B1                    2.8
Tooth width b1                    2.7
Tooth width B2                    8.3

CHAIN                            mm
Pitch                                       8
Intenal width                        3
RollerΦ                                  5

Material:C 45
*Weld on hub

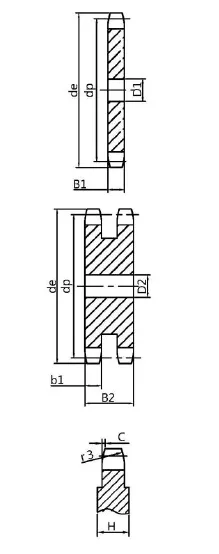

05A-1-2
PLATEWHEELS 8x3mm
For chain Acc.to DIN 8187
ISO/R606
PLATE WHEELS                 mm
Tooth radius r3                          8
Radius width C                          1.0
Tooth width B1                         2.8
Tooth width b1                         2.7
Tooth width B2                         8.3

CHAIN                                mm
Pitch                                            8
Internal width                           3
RollerΦ                                       5

H=4mm,From Z=46 the width
of the plate is increased

1. Produce strictly in accordance with ANSI or DIN standard dimension
2. Material: C45 steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, Standard America or customer drawing
4. Pilot bore, finished bore, taper bore and special bore.
5. Bright surface and high precision
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing equipment: Hobbing machine, Slotting machine, CNC lathes and other equipment.

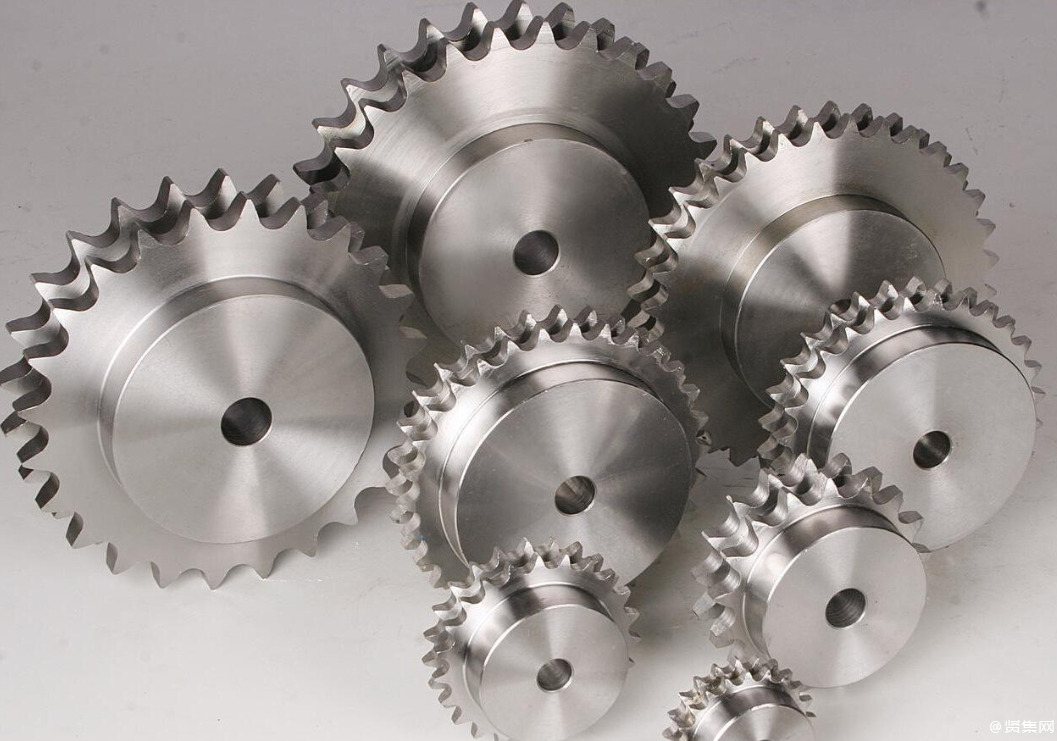

10. Sprocket models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
11.Chain wheel is a type of wheel with interlocking teeth, mainly used to mesh with accurately spaced blocks on chain links or cables to achieve power transmission. Its tooth shaped design ensures that the chain can smoothly enter and exit meshing, while reducing the impact and contact stress during meshing. Chain wheels are widely used in multiple fields.
